| LCD size |
10.25"TFT |
| Outline Dimension |
265.2*109.9*9.6 mm |
| Display area |
243.648*91.368 mm |
| Number of Pixel |
1920*720 |
| Brightness |
600cd/m2 |
| Interface |
LVDS double lane |
| Viewing Angle |
IPS |
| Operating Temperature |
-20-70 |
| Storage Temperature |
-30~80 |
Product Description

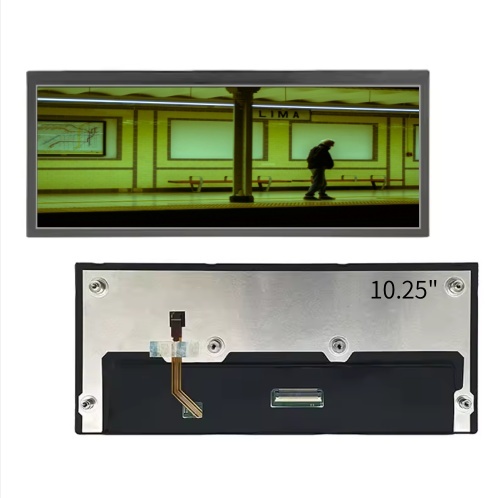

This 10.25-inch high-definition (HD) In-Plane Switching (IPS) liquid crystal display (LCD) module, boasting a 1920×720 resolution and a high-speed Low-Voltage Differential Signaling (LVDS) interface, offers several advanced features. It provides large-screen high-definition visuals with a wide viewing angle, enables real-time synchronization of dynamic data, exhibits low power consumption and excellent anti-interference capabilities, ensures durability across multiple scenarios, and allows for effortless integration. Tailored for medium to large-sized devices, including smart automotive central control systems, industrial multi-device monitoring platforms, and commercial displays, this module delivers a highly reliable solution for applications demanding high-speed data transmission and high-definition multi-angle visualization.
